Lets consider a hypothetical Webex partner named TelSP to illustrate the different models of deployments that the partner can adopt.

Here are the high-level specifications & requirements of TelSP:

• The partner plans on using sip.telsp.com as the top-level domain that is shared across all the customers they manage.

• The partner owns sip.telsp.com and can administer the DNS infrastructure and Certificate authorities, manage DNS addresses, and sign certificates for this domain and its sub domains.

• The partner can deploy two distinct session border controllers (physical or virtual) as Local Gateways for shared PSTN access among end customers.

• The partner has two physical sites, and both these sites share PSTN connectivity:

  • Miami

  • Chicago

• TelSP operates their local gateways on behalf of the two customers CustA and CustB as they are referred to from herewith.

The desired scenario is to have PSTN origination/termination for both customers using the Miami and Chicago gateways supplied by the partner, as shown in the illustration:

Simplified deployment example

The following simplified example demonstrates how Peer cert identity enables a single certificate to support multiple customer trunks:

• Certificate—sip.telsp.com

• Trunks

  • custa.sip.telsp.com

  • custb.sip.telsp.com

• Peer cert identity—sip.telsp.com

• Result

  • Single certificate is used

  • Multiple customer trunks are supported

Associating customer location to trunk and gateway

The following sections provide detailed configuration mappings for the deployment described above.

Webex Calling allows creation of trunks and sharing a trunk across multiple locations. When creating the trunk, associate the trunk with a location.

For CustA, the trunk details are as follows:

The illustration shows the association of the customer location to Gateway and Trunk for CustA:

In this deployment, the trunk associated with the location is the primary PSTN connection for that location. The other trunk is used as a secondary PSTN connection or route for specific dial plan entries. The implementation of the primary and secondary PSTN connection relationship is through a Route Group concept. See the Configure gateway trunks in the Control Hub section for details.

For CustB, a similar setup with the following trunks is created:

The illustration shows the association of the customer location to Gateway and Trunk for CustB:

The illustration shows a third location namely New York, which you can add later and point to the trunk_chicago trunk as its primary PSTN connection.

When deploying a local gateway that shares multiple trunks, Cisco mandates using a unique FQDN per trunk. See Configure-trunks,-route-groups,-and-dial-plans-for-Webex-Calling for details.

Using an IP address and a well-known port per trunk is an ideal choice. However, procuring a public IPv4 address can be challenging to some partners who wish to use one address per gateway per site.

Therefore read these important pointers:

• Cisco doesn’t mandate an IP address per trunk.

• A trunk address can resolve to a unique IP address or to the address shared between another trunk.

• Cisco recommends to configure each trunk connection with a unique IP address and port combination on the Local Gateway for the following reasons:

  1. Maintaining separate TCP connection links per trunk supports the maximum concurrent call capacity per trunk. Sharing IP address and port combinations across trunks can negatively impact call capacity.

  2. Provides network level isolation between customers

  3. It’s typical of Session border controllers to reuse the ephemeral TCP socket connection unless there’s isolation provided as a unique tenant partitioned by an IP address or a unique listen port for the tenant.

  4. Connection or connections per trunk through tenant isolation provides better throughput specifically in network conditions with high data loss. Therefore traffic from one customer doesn’t impact the other.

IP Address per gateway: Trunk configuration and recommendations

Refer to these examples of different models for planning:

Model 1: Unique IP address per trunk

In this model, all trunks hosted by both gateways resolve to a unique IP address and each of these trunks may or may not use the same port but ideally the same port.

Representing the information in a tabular format:

In this same model, the partner can use an SRV address. Webex Calling only allows “_sips._tcp” as the service and protocol combination to discover the peer address if it’s an SRV record.

A sample of how an SRV record resolves

nslookup -type=srv _sips._tcp.trunk.miami.custa.sip.telsp.com
Server:		8.8.8.8
Address:	8.8.8.8#53

Non-authoritative answer:
_sips._tcp.trunk.miami.custa.sip.telsp.com = 3600 50 5061 miami.custa.sip.telsp.com

Model 2: Shared IP per gateway, unique listen ports

In this model, all trunks hosted on the Chicago local gateway resolves to the same IP address and all trunks hosted on the Miami local gateway resolves to a different IP. However, when using the same IP, each trunk is configured using an FQDN in the control hub and is configured with a unique port.

In this same model, the partner is using an SRV address. Webex Calling only allows “_sips._tcp” as the service and protocol combination to discover the peer address if it’s an SRV record.

Another sample of how an SRV record resolves is as follows. In this example, there exists 1 A record per IP address. However, the port is unique per address and is represented through a specific DNS configuration linking an SRV address to the right port.

nslookup -type=srv _sips._tcp.trunk.miami.custa.sip.telsp.com
Server:		8.8.8.8
Address:	8.8.8.8#53

Non-authoritative answer:
_sips._tcp.trunk.miami.custa.sip.telsp.com = 3600 50 5061 miami.sip.telsp.com

nslookup -type=srv _sips._tcp.trunk.miami.custb.sip.telsp.com
Server:		8.8.8.8
Address:	8.8.8.8#53

Non-authoritative answer:
_sips._tcp.trunk.miami.custb.sip.telsp.com = 3600 50 5062 miami.sip.telsp.com

For SRV-based trunks, the Peer cert identity is initially populated from the configured SRV values and can be customized, subject to the same validation rules.

The partner owns telsp.com and its subdomains. Therefore, the DNS server and the authority to get certificates signed by an approved Certificate authority lies with the partner.

• Cisco Webex expects the partner to publish the FQDN or SRV address including A Records in the public domain.

• Cisco Webex expects the partner to use one of the certificate authorities listed in this document.

When configuring trunks using FQDN or SRV:

• Each trunk must still have a unique FQDN for routing and identification

• DNS records (A Record or SRV) must be correctly configured and resolvable

• These FQDNs are used for signalling and routing. Certificate validation is performed against the configured Peer cert identity, which defaults to the trunk FQDN values but can be customized to a shared, partner-owned identity.

  The Peer cert identity field pre-populates from the trunk FQDN and can be overridden with a shared, partner-owned domain to use a single certificate across multiple customer trunks.

Set up the Gateway

Use these resources to set up a local gateway.

To set up Cisco CUBE, use this procedure: Configure Local Gateway on Cisco IOS XE for Webex Calling

You can set up approved third-party SBCs, see: Get started with Local Gateway

Set up the partner hosted gateway in accordance with these guidelines: Get started with Local Gateway

Set each trunk according to the relevant instructions for the SBC device. For the Cisco CUBE instructions, see: Configure Local Gateway on Cisco IOS XE for Webex Calling

Set up voice classes, dial peers, and dial peer groups for incoming and outgoing traffic for the trunk as per the image:

While provisioning a trunk, Control Hub provides an option to configure Peer cert identity in the Add Trunk page. This enhancement simplifies the workflow by enabling partners to configure and reuse a single top-level domain across multiple customer organizations. This approach eliminates the need for separate certificates per customer or trunk, reducing operational effort and simplifying the setup process.

When configuring trunks in Control Hub, define a Peer cert identity to enable the use of a single certificate for your top-level domain across all customer organizations. Ensure that the certificate’s CN or SAN includes this top-level domain. With Peer cert identity, the local gateway uses a single certificate whose CN or SAN contains the partner’s shared domain (for example, sip.telsp.com). Wildcard certificates (for example, *.sip.telsp.com) are not supported. Webex Calling accepts this certificate for every customer trunk explicitly configured with that value as its Peer cert identity. The certificate must contain the exact configured Peer cert identity value in its CN or SAN. This eliminates the need to configure separate certificates or CN/SAN entries for individual trunk FQDNs.

Domain verification and certificate usage

It’s important to understand how domain verification differs from certificate usage:

• Domain verification (Per customer)—Each customer organization must independently verify the domain (for example, sip.telsp.com) by adding a unique TXT record in DNS. This ensures that the partner owns the domain and prevents unauthorized usage.

• Certificate management (Global)—A single certificate issued for the partner’s top-level domain can be shared across all customer trunks using Peer cert identity. There’s no requirement to maintain separate certificates per customer or per trunk.

Peer cert identity behaviour

Peer cert identity defines the identity that Webex Calling expects in the certificate presented by the local gateway.

When configured:

• Webex Calling validates the certificate by matching the configured Peer cert identity against the CN or SAN in the certificate

• If the values match, the TLS connection is accepted

• If the values don’t match, the connection is rejected

Only trunks explicitly configured with the matching Peer cert identity are allowed to authenticate.

Certificate validation alone isn’t the only check performed during authentication. In addition to validating the certificate CN or SAN against the configured Peer cert identity, Webex Calling also verifies that the trunk FQDN is explicitly configured and associated with the matching Peer cert identity in Control Hub.

The Peer cert identity is pre-populated from the trunk FQDN/SRV values. If you keep the defaults, the existing per-trunk certificate behavior is unchanged. Existing certificate-based trunks continue to work without modification. You can adopt a shared Peer cert identity on new or existing trunks at your own pace, and both models can coexist.

1. Valid configuration example:

   • Certificate CN—sip.telsp.com

   • Certificate SAN—custa.sip.telsp.com

   • Peer cert identity—custa.sip.telsp.com

   • Trunk FQDN—trunk.miami.custa.sip.telsp.com

   Result—The connection succeeds because the Peer cert identity (custa.sip.telsp.com) matches the SAN value in the certificate, and the trunk FQDN (trunk.miami.custa.sip.telsp.com) is a subdomain of the configured Peer cert identity.

2. Connection failure example:

   • Certificate CN—sip.telsp.com

   • Certificate SAN—custa.sip.telsp.com

   • Peer cert identity—custb.sip.telsp.com

   • Trunk FQDN—trunk.miami.custb.sip.telsp.com

   Result—The connection fails at TLS handshake because the Peer cert identity (custb.sip.telsp.com) is not present in the certificate's CN or SAN. The trunk FQDN is correctly a subdomain of the Peer cert identity, but the certificate does not carry that identity.

3. Invalid configuration example:

   • Certificate CN—sip.telsp.com

   • Certificate SAN—custa.sip.telsp.com

   • Peer cert identity—custa.sip.telsp.com

   • Trunk FQDN—trunk.miami.custb.sip.telsp.com

   Result—Control Hub rejects this configuration at save time because the trunk FQDN (trunk.miami.custb.sip.telsp.com) is not equal to or a subdomain of the configured Peer cert identity (custa.sip.telsp.com).

From the Partner Hub, you can launch the Control Hub for either CustA or CustB and configure the gateway. Use this procedure to configure for each customer:

1. Create the trunk—Add a trunk under Calling/Call Routing/Trunk for each partner shared gateway. To set up a trunk, see Configure trunks, route groups, and dial plans for Webex Calling

2. Add a domain and verify—Add and verify the following domain that is used to create a trunk under Management/Organization Settings/Domains.

   CustomerB	CustomerC
   sip.telsp.com	sip.telsp.com

   On adding a domain, a token is generated and placed in the TXT record for the domain in the partner’s DNS server. This record allows Control Hub to verify that the domain is owned by the partner. For details, see Manage your domains

   The common domain is used for verification on each customer. However, since this verification happens at the customer organization level, ensure that a different token is generated and used for verification on each customer organization. Because a single domain is used across customer organizations, and each customer organization must independently verify the domain using a unique TXT record, even when sharing the same domain.

   Only domain verification is required for Peer cert identity. Don’t claim the shared domain into a customer organization. A domain can be claimed by only one organization, while the same domain can be verified in multiple organizations.

3. Set up SBC address with FQDN—

   For the Miami gateway:

   Parameter	CustomerB	CustomerC
   Location	Denver	Boston
   Trunk Name	trunk_miami	trunk_miami
   Trunk Type	Certificate based	Certificate based
   Device Type	e.g. Cisco Unified Border Element (or another supported device)	e.g. Cisco Unified Border Element (or another supported device)
   SBC Address type	FQDN	FQDN
   Hostname	lgw.miami	lgw.miami
   Domain	sip.telsp.com	sip.telsp.com
   Port	5061	5062
   FQDN	lgw.miami.customerB.sip.telsp.com:5061	lgw.miami.customerC.sip.telsp.com:5062
   Maximum number of concurrent calls (250-6500)	500	500

   For the Chicago gateway:

   Parameter	CustomerB	CustomerC
   Location	Detroit	Dallas
   Trunk Name	trunk_chicago	trunk_chicago
   Trunk Type	Certificate based	Certificate based
   Device Type	e.g. Cisco Unified Border Element (or another supported device)	e.g. Cisco Unified Border Element (or another supported device)
   SBC Address type	FQDN	FQDN
   Hostname	lgw.chicago	lgw.chicago
   Domain	sip.telsp.com	sip.telsp.com
   Port	5061	5062
   FQDN	lgw.chicago.customerB.sip.telsp.com:5061	lgw.chicago.customerC.sip.telsp.com:5062
   Maximum number of concurrent calls (250-6500)	500	500

   • (Optional) Trunk names don’t need to be unique across customer organizations. Reusing the same name (for example, trunk_miami) makes the trunk easier to track.

   • Certain SBCs allow configuring the same port but this configuration can impact the capacity. Therefore, use different ports.

4. Peer cert identity—

   • Prefix—The prefix is optional. Leave it empty to set the Peer cert identity to the domain alone. This is the shared-certificate model used in this article (Peer cert identity—sip.telsp.com, covering all customer trunks). Optionally, enter a prefix to define a more specific certificate identity (for example, prefix: customerB, Domain: customerB.sip.telsp.com for a per-customer certificate). The trunk FQDN itself remains defined by the SBC address Host name and Domain fields and must be equal to or a subdomain of the resulting Peer cert identity.

     Example:

     Prefix—customerB

     Domain—sip.telsp.com

     Result—customerB.sip.telsp.com

   • Domain: Select a domain from the list of domains verified in the customer organization. The resulting Peer cert identity (prefix + domain) must match the CN or SAN of the certificate your SBC presents. Webex Calling uses this value to authenticate the TLS connection.

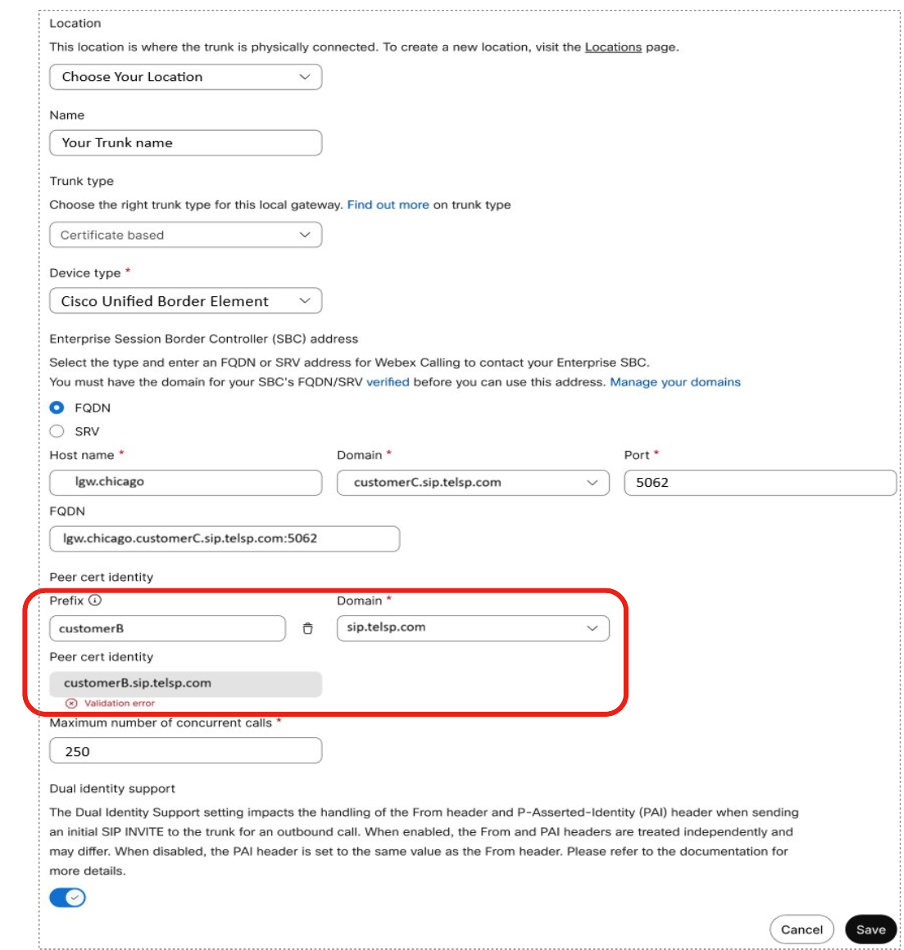

     Control Hub rejects this configuration at save time because the trunk FQDN is not under the configured Peer cert identity.

     If the Peer cert identity does not match the CN or SAN in the certificate presented by the SBC, Webex Calling rejects the TLS connection and the trunk fails to establish.

5. Using Trunks—choose any arbitrary location for the trunk, due to the following:

   • Any location can use the trunk in a PSTN connection.

   • You can access the trunk through a route group.

   • Any dial plan can use the trunk.

6. See the trunk definitions with the associated locations:



   You can use these trunks to create route groups. In the image, a route group rg_miami_chicago is defined which routes calls to the trunk_miami trunk as the primary option and to the trunk_chicago trunk as a secondary option.



   You can define a second route group rg_chicago_miami which routes calls to the trunk_chicago trunk as the primary option and to the trunk_miami trunk as a secondary option.

7. The trunks and route groups defined are now available in the Calling Connection PSTN option for each location. In the image, see the Denver location.



8. You can use the trunks and route groups in the dial plan definition. For example, an on-premise number range in Chicago for the customer are split out to terminate to the rg_chicago_miami route group (for all locations) in the image:





Provision at scale with APIs

Partners managing a large number of customer organizations can provision domains at scale using APIs instead of the UI.

• Verify Domain

• Call Routing
