The collection of Desk Phone 9800 Series

Cisco Desk Phone 9800 Series is designed to facilitate a convenient and flexible collaboration experience during calls and meetings for diverse roles, work modes, and workplaces.

The available hardware features vary flexibly across models to meet different work settings. See the following table for the supported features on each model.

Table 1. Key hardware features
FeaturesCisco Desk Phone 9841Cisco Desk Phone 9851Cisco Desk Phone 9861Cisco Desk Phone 9871

Screen

3.5" Grayscale screen3.7" Color screen5" Color screen5" Touch color screen

Physical line keys

4 line keys

6 line keys

10 line keys

No physical line keys

Supports 32 lines on the touchscreen

Bluetooth®

NoNo

9861: Yes

9861NR: No

9871: Yes

9871NR: No

Wi-Fi

No

No

9861: Yes

9861NR: No

9871: Yes

9871NR: No

USB ports

USB-A port x 1

USB-A port x 1

USB-C port x 1

USB-A port x 1

USB-C port x 1

USB-A port x 1

USB-C port x 1

KEM support

Not supported

Supports 1 KEMSupports 3 KEMsSupports 3 KEMs

PoE support

PoE Class 2PoE Class 3PoE Class 3PoE Class 3

For details about your phone specifications and features, see Cisco Desk Phone 9800 Series Data Sheet.

What's in the box

The following items came with your phone. If any items are missing, contact your administrator.

  • Handset x 1
  • Foot stand x 1
  • Handset cable x 1
  • Ethernet cable x 1
  • Pointer card x 1, containing the links to the product help and compliance information

If your network doesn't support Power over Ethernet (PoE) or you want to use Cisco Desk Phone 9861 and 9871 in a wireless network, order a power adapter from Cisco. For the list of available power adapters, see the Ordering information section in Cisco Desk Phone 9800 Series Data Sheet.

Hardware and buttons

Your phone has several buttons that allow you to access to the phone features.

The features vary with models. See the information for your phone model.

the front view of phone 9841
Cisco Desk Phone 9841 front view
Table 2. Hardware and buttons on the front

Hardware Feature

Purpose

1. Phone screen

3.5" grayscale screen (Resolution 384 x 160)

2. Top 360 LED

Indicates the states of call, message, and the phone.

3. Action button

Press the button to place a service call, such as an emergency call, if configured.

4. Line buttons and programmable feature buttons

Access your phone lines, features, and call sessions.

5. Softkey buttons

Access to functions and services.

6. NFC tag

The location of the NFC tag.

The NFC feature will be available in the later firmware release.

7. Hold/Resume, Transfer, and Conference

Hold/Resume the Hold key: Place an active call on hold and resume the held call.

Transfer the Transfer key: Transfer a call.

Conference the Conference key: Create a conference call.

8. Headset, Speakerphone, and Mute

Headset the Headset key: Toggle the headset on. When the headset is on, the button lights up. To leave headset mode, pick up the handset or press Speakerphone the Speaker key.

Speakerphone the Speaker key: Toggle the speakerphone on or off. When the speakerphone is on, the button lights up.

Mute the Mute key: Toggle the microphone on or off. When the microphone is muted, the button lights up.

9. Alphanumeric keypad

Use the keypad to input numbers, letters, and symbols.

10. Volume button

Adjust the handset, headset, and speakerphone volume (off hook), and the ringer volume (on hook and when the phone is idle).

11. Favorite, Settings, and Contacts

Favorite the favorite key: Access Voicemail, Help Desk list, and message services, if configured.

Settings the Settings key: Access the settings menu.

Contacts the Contacts key: Access directories.

12. Front Arc LED

Indicates the states of the phone, calls,and messages.

13. Navigation Cluster

The Navigation Cluster consists of the Navigation Ring and Select button. Used to scroll through menus, highlight items and select the highlighted item.

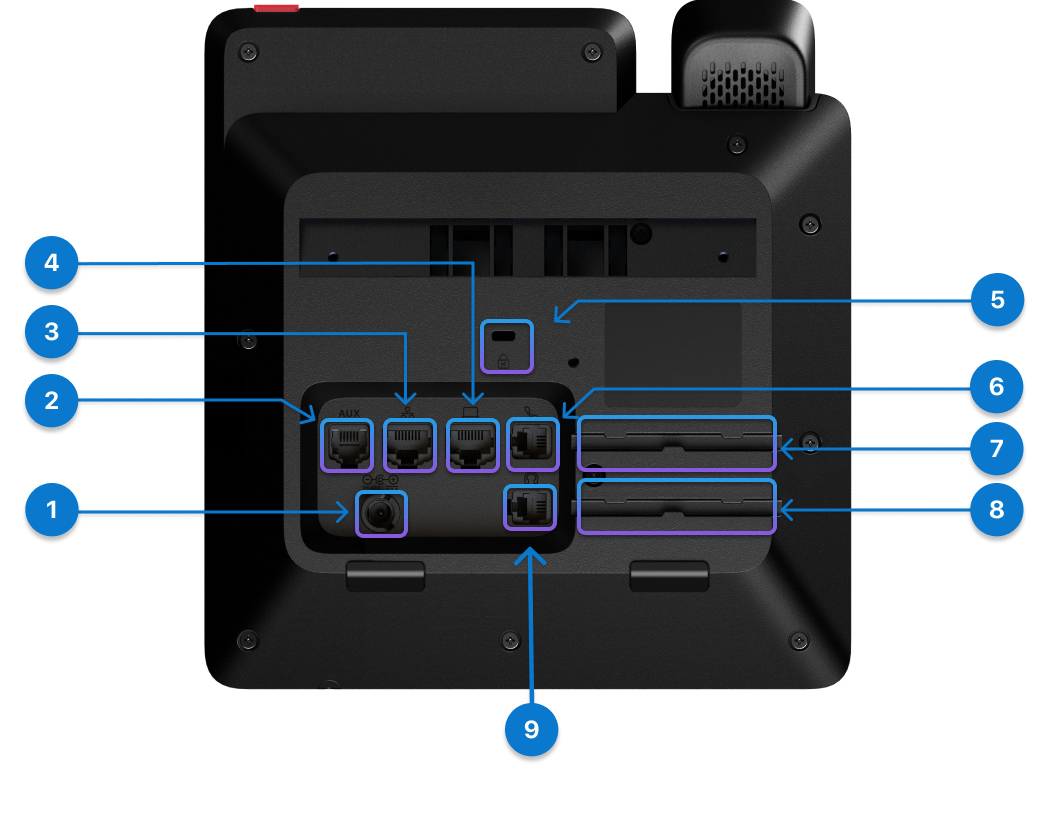

the back view of phone 9841
Cisco Desk Phone 9841 back view
Table 3. Ports on the back of the phone

Port

Description

1. Power port

If your Ethernet doesn't support PoE, connect the power adapter to this port to power up your phone.

The power adapter is purchased separately.

2. Auxiliary port

Used for collecting console logs.

3. Ethernet port

Connect this port to your Ethernet port on the wall or on your router with the shipped Ethernet cable.

4. PC port

Optionally, connect your computer to this port to access the network through the phone.

5. Kensington security slot

To physically secure the phone in public places, attach an anti-theft cable lock to the slot.

6. Handset port

Connect your handset to this port with the shipped handset cable.

7. Cable socket

Used for holding the handset cable.

the right-side view of phone 9841
Cisco Desk Phone 9841 right-side view
Table 4. Ports on the right side of the phone

Port

Description

1. USB-A port

Connect your USB-A headset or Bluetooth® headset dongle to this port.

You can also connect a mobile device for charging when the phone is powered from a wall socket.

See the USB port specifications and the best practices for device charging in Use Cisco Desk Phone 9800 Series to charge USB-powered devices.

2. Foot stand

Supports your phone standing on a desk.

the front view of phone 9851
Cisco Desk Phone 9851 front view
Table 5. Hardware and buttons on the front

Hardware Feature

Purpose

1. Phone screen

3.7" color screen (Resolution 480 x 240)

2. Top 360 LED

Indicates the states of call, message, and the phone.

3. Action button

Press the button to place a service call, such as an emergency call, if configured.

4. Line buttons and programmable feature buttons

Access your phone lines, features, and call sessions.

5. Softkey buttons

Access to functions and services.

6. NFC tag

The location of the NFC tag.

The NFC feature will be available in the later firmware release.

7. Hold/Resume, Transfer, and Conference

Hold/Resume the Hold key: Place an active call on hold and resume the held call.

Transfer the Transfer key: Transfer a call.

Conference the Conference key: Create a conference call.

8. Headset, Speakerphone, and Mute

Headset the Headset key: Toggle the headset on. When the headset is on, the button lights up. To leave headset mode, pick up the handset or press Speakerphone the Speaker key.

Speakerphone the Speaker key: Toggle the speakerphone on or off. When the speakerphone is on, the button lights up.

Mute the Mute key: Toggle the microphone on or off. When the microphone is muted, the button lights up.

9. Alphanumeric keypad

Use the keypad to input numbers, letters, and symbols.

10. Volume button

Adjust the handset, headset, and speakerphone volume (off hook), and the ringer volume (on hook and when the phone is idle).

11. Favorite, Settings, and Contacts

Favorite the favorite key: Access Voicemail, Help Desk list, and message services, if configured.

Settings the Settings key: Access the settings menu.

Contacts the Contacts key: Access directories.

12. Front Arc LED

Indicates the states of the phone, calls,and messages.

13. Calendar button

Tap the Calendar button to open your calendar.

This button is only accessible if your administrator has set up the Calendar service on your phone.

14. Navigation Cluster

The Navigation Cluster consists of the Navigation Ring and Select button. Used to scroll through menus, highlight items and select the highlighted item.

the back view of phone 9851
Cisco Desk Phone 9851 back view
Table 6. Ports on the back of the phone

Port

Description

1. Power port

If your Ethernet doesn't support PoE, connect the power adapter to this port to power up your phone.

The power adapter is purchased separately.

2. USB-C port

Connect your USB-C headset.

You can also connect a mobile device for charging.

See the USB port specifications and the best practices for device charging in Use Cisco Desk Phone 9800 Series to charge USB-powered devices.

3. Ethernet port

Connect this port to your Ethernet port on the wall or on your router with the shipped Ethernet cable.

4. PC port

Optionally, connect your computer to this port to access the network through the phone.

5. Kensington security slot

To physically secure the phone in public places, attach an anti-theft cable lock to the slot.

6. Handset port

Connect your handset to this port with the shipped handset cable.

7. Cable socket

Used for holding the handset cable.

the right-side view of phone 9851,9861,and 9871
Cisco Desk Phone 9851 right-side view
Table 7. Ports on the right side of the phone

Port

Description

1. USB-A port

  • Connect a USB-A headset or Cisco Desk Phone 9800 Key Expansion Module

  • Connect a mobile device for charging

See the USB port specifications and the best practices for device charging in Use Cisco Desk Phone 9800 Series to charge USB-powered devices.

2. Foot stand

Supports your phone standing on a desk.

Cisco Desk Phone 9861 is available in two versions: the 9861 model that features Wi-Fi and Bluetooth® capabilities, and the 9861NR model that doesn't support Wi-Fi and Bluetooth®. Despite this distinction, both versions have the same hardware features.

the front view of phone 9861
Cisco Desk Phone 9861 front view
Table 8. Hardware and buttons on the front

Hardware Feature

Purpose

1. Phone screen

5" color screen (Resolution 800 x 480)

2. Top 360 LED

Indicates the states of call, message, and the phone.

3. Action button

Press the button to place a service call, such as an emergency call, if configured.

4. Line buttons and programmable feature buttons

Access your phone lines, features, and call sessions.

5. Softkey buttons

Access to functions and services.

6. NFC tag

The location of the NFC tag.

The NFC feature will be available in the later firmware release.

7. Hold/Resume, Transfer, and Conference

Hold/Resume the Hold key: Place an active call on hold and resume the held call.

Transfer the Transfer key: Transfer a call.

Conference the Conference key: Create a conference call.

8. Headset, Speakerphone, and Mute

Headset the Headset key: Toggle the headset on. When the headset is on, the button lights up. To leave headset mode, pick up the handset or press Speakerphone the Speaker key.

Speakerphone the Speaker key: Toggle the speakerphone on or off. When the speakerphone is on, the button lights up.

Mute the Mute key: Toggle the microphone on or off. When the microphone is muted, the button lights up.

9. Alphanumeric keypad

Use the keypad to input numbers, letters, and symbols.

10. Volume button

Adjust the handset, headset, and speakerphone volume (off hook), and the ringer volume (on hook and when the phone is idle).

11. Favorite, Settings, and Contacts

Favorite the favorite key: Access Voicemail, Help Desk list, and message services, if configured.

Settings the Settings key: Access the settings menu.

Contacts the Contacts key: Access directories.

12. Front Arc LED

Indicates the states of the phone, calls, and messages.

12. Calendar button

Tap the Calendar button to open your calendar.

This button is only accessible if your administrator has set up the Calendar service on your phone.

13. Navigation Cluster

The Navigation Cluster consists of the Navigation Ring and Select button. Used to scroll through menus, highlight items and select the highlighted item.

the back view of phone 9861
Cisco Desk Phone 9861 back view
Table 9. Ports on the back of the phone

Port

Description

1. Power port

If your Ethernet doesn't support PoE or you're using a wireless network, connect the power adapter to this port to power up your phone.

The power adapter is purchased separately.

2. USB-C port

  • Connect a USB-C headset

  • Connect a mobile device for charging

See the USB port specifications and the best practices for device charging in Use Cisco Desk Phone 9800 Series to charge USB-powered devices.

3. Ethernet port

Connect this port to your Ethernet port on the wall or on your router with the shipped Ethernet cable.

4. PC port

Optionally, connect your computer to this port to access the network through the phone.

5. Kensington security slot

To physically secure the phone in public places, attach an anti-theft cable lock to the slot.

6. Handset port

Connect your handset to this port with the shipped handset cable.

7. Cable socket

Used for holding the handset cable.

the right-side view of phone 9851,9861,and 9871
Cisco Desk Phone 9861 right-side view
Table 10. Ports on the right side of

Port

Description

1. USB-A port

  • Connect a USB-A headset or Cisco Desk Phone 9800 Key Expansion Module

  • Connect a mobile device for charging

See the USB port specifications and the best practices for device charging in Use Cisco Desk Phone 9800 Series to charge USB-powered devices.

2. Foot stand

Supports your phone standing on a desk.

Cisco Desk Phone 9871 is available in two versions: the 9871 model that features Wi-Fi and Bluetooth® capabilities, and the 9871NR model that doesn't support Wi-Fi and Bluetooth®. Despite this distinction, both versions have the same hardware features.

the front view of phone 9871
Cisco Desk Phone 9871 front view
Table 11. Hardware and buttons on the front

Hardware Feature

Purpose

1. Phone screen

5" color touch screen (Resolution 1280 x 720)

2. Top 360 LED

Indicates the states of call, message, and the phone.

3. Action button

Press the button to place a service call, such as an emergency call, if configured.

4. NFC tag

The location of the NFC tag.

The NFC feature will be available in the later firmware release.

5. Hold/Resume, Transfer, and Conference

Hold/Resume the Hold key: Place an active call on hold and resume the held call.

Transfer the Transfer key: Transfer a call.

Conference the Conference key: Create a conference call.

6. Headset, Speakerphone, and Mute

Headset the Headset key: Toggle the headset on. When the headset is on, the button lights up. To leave headset mode, pick up the handset or press Speakerphone the Speaker key.

Speakerphone the Speaker key: Toggle the speakerphone on or off. When the speakerphone is on, the button lights up.

Mute the Mute key: Toggle the microphone on or off. When the microphone is muted, the button lights up.

7. Alphanumeric keypad

Use the keypad to input numbers, letters, and symbols.

8. Volume button

Adjust the handset, headset, and speakerphone volume (off hook), and the ringer volume (on hook and when the phone is idle).

9. Favorite, Settings, and Contacts

Favorite the favorite key: Access Voicemail, Help Desk list, and message services, if configured.

Settings the Settings key: Access the settings menu.

Contacts the Contacts key: Access directories.

10. Front Arc LED

Indicates the states of the phone, calls,and messages.

11. Home button

Press it to go back to the Home screen.

the back view of phone 9871
Cisco Desk Phone 9871 back view
Table 12. Ports on the back of the phone

Port

Description

1. Power port

If your Ethernet doesn't support PoE or you're using a wireless network, connect the power adapter to this port to power up your phone.

The power adapter is purchased separately.

2. USB-C port

  • Connect a USB-C headset

  • Connect a mobile device for charging

See the USB port specifications and the best practices for device charging in Use Cisco Desk Phone 9800 Series to charge USB-powered devices.

3. Ethernet port

Connect this port to your Ethernet port on the wall or on your router with the shipped Ethernet cable.

4. PC port

Optionally, connect your computer to this port to access the network through the phone.

5. Kensington security slot

To physically secure the phone in public places, attach an anti-theft cable lock to the slot.

6. Handset port

Connect your handset to this port with the shipped handset cable.

7. Cable socket

Used for holding the handset cable.

the right-side view of phone 9851,9861,and 9871
Cisco Desk Phone 9871 right-side view
Table 13. Ports on the right side of

Port

Description

1. USB-A port

  • Connect a USB-A headset or Cisco Desk Phone 9800 Key Expansion Module

  • Connect a mobile device for charging

See the USB port specifications and the best practices for device charging in Use Cisco Desk Phone 9800 Series to charge USB-powered devices.

2. Foot stand

Supports your phone standing on a desk.

Connect your phone

Get your phone ready by installing the components and get it connected to the network and power.

The phone register process varies with deployment ways. Your phone may get registered automatically when you connect it to the network. Otherwise, you must get the activation code from your administrator to register your phone.

Use the information in this section to connect your phone in a wired network.

Your phone supports Power over Ethernet (PoE). If your network supports PoE, an Ethernet connection powers up your phone and connects it to the network. You don't have to connect the shipped power adapter.

Phone ports vary by model. The 9851 diagrams used in the following steps show the ports to connect. Locate the right ports on your phone when you set up the phone.
1

Connect the shipped handset to the handset port.

the graphic for installing handset

2

Insert the foot stand to the slots on the back of the phone.

The foot stand is designed for two tilt angles. Try both tilt angles to find the best position for your viewing preferences. To switch to the other angle, unplug the foot stand, flip it over, and reinsert it to the slots.

the graphic for installing footstand

3

Connect your phone to the network with the shipped Ethernet cable.

If your network supports PoE, your phone powers up when you connect it to the network. Otherwise, go to the next step to connect the power adapter.

the graphic for connecting Ehternet

4

(Optional) Connect your phone to a power socket with the power adapter that you purchased separately from Cisco.

Your phone boots up automatically when it connects to the power source.
If your network supports PoE, skip this step.

the graphic for connecting power

What to do next

Register your phone.

Follow the steps in this section to connect your phone in a wireless network.

Only Cisco Desk Phone 9861 and 9871 support network connection via Wi-Fi. Cisco Desk Phone 9841, 9851, 9861NR, and 9871NR don't support Wi-Fi.
1

Connect the shipped handset to the handset port.

the graphic for installing handset

2

Insert the foot stand to the slots on the back of the phone.

The foot stand is designed for two tilt angles. Try both tilt angles to find the best position for your viewing preferences. To switch to the other angle, unplug the foot stand, flip it over, and reinsert it to the slots.

the graphic for installing footstand

3

Connect your phone to a power socket with the shipped power adapter.

the graphic for connecting power

Your phone boots up automatically when it connects to the power source.
4

Press Start on the Welcome screen.

5

Choose your wireless network from the list, enter the username and password, and press Apply.

What to do next

Register your phone.

Register your phone

Depending on how your administrator configures your phone on the call control system, you might use one of the following methods to register your phone:

  • Method 1: No action is required during the phone registration. The registration is done automatically.
  • Method 2: A 16-digit activation code is required during the phone registration. You can get it from your administrator in advance. Enter the activation code when you are prompted for it.
  • Method 3: An alternate TFTP server address is required if your phone is missing a TFTP address. You can get it from your administrator when this situation occurs. You need to manually enter the alternate TFTP server to continue the registration.

By default, 802.1X authentication is disabled on your phone.

If your network uses the 802.1X protocol, ensure that you enable 802.1X authentication on your phone by accessing Settings the Settings key > Network and service > Security settings. Otherwise, your phone will fail to connect to the network.

Your phone gets registered automatically when it boots up and connects to the network. In this scenario of auto registration, you don't need to enter any input as the whole registration proceeds automatically.

Before you begin

  • You have turned on your phone.
  • Your administrator has configured your phone on the call control system.
1

Select Start on the Welcome screen.

If you don't take any action, the phone goes to the next step at timeout.

Your phone tries to connect to the network. If you use the wireless network, perform the next step. Otherwise, skip it.

2

(Optional) Choose your wireless network from the list, enter your credentials, and select Apply.

Cisco Desk Phone 9841 and 9851 don't support Wi-Fi.
3

Select Next when the screen displays that your phone successfully connects to Ethernet or WiFi.

If you don't take any action, the phone goes to the next step at timeout. Then the phone starts checking the configuration, and then starts the registration automatically.

If you are prompted to choose a call service, do one of the following actions:
  • If your phone will be registered on the Cisco Unified Communications Manager (Unified CM), select Cisco UCM > Register.
  • If your phone will be registered on the Webex Calling, select Cisco cloud service > Register.
Contact your administrator if you don't know which service to select.

Typically, the registration takes about 3 minutes depending on the network condition.

After the registration succeeds, your primary line name or number displays on the top left of the phone screen.

4

When the registration is complete, you will be prompted to enable or disable the noise removal feature.

If you don't take any action, the phone enables the feature at timeout.
This feature can filter out background noises during a call. If you choose to disable the feature now, you can still enable it later.

After your phone boots up, it checks the configuration automatically, and you will be prompted to enter an activation code. If you don't have a new activation code, contact your administrator.

Activation codes are used to set up your new phone. They can only be used once, and expire after 1 week.

You might be prompted to choose a call service during the registration, depending on your network condition and your administrator's configurations on the call control system.

Before you begin

  • You have turned on your phone.

  • Your phone connects to a wired or wireless network.

  • Get a 16-digit activation code from your administrator.

1

Select Start on the Welcome screen.

If you don't take any action, the phone goes to the next step at timeout.

Your phone tries to connect to the network. If you use the wireless network, perform the next step. Otherwise, skip it.

2

(Optional) Choose your wireless network from the list, enter your credentials, and select Apply.

Cisco Desk Phone 9841 and 9851 don't support Wi-Fi.
3

Select Next on the phone screen showing that your phone successfully connects to the network.

If you don't take any action, the phone goes to the next step at timeout. Then the phone starts checking the configuration, and then starts the registration automatically.

If you are prompted to choose a call service, do one of the following actions according to your network environment and the platform where the phone will be registered:
  • If your phone connects to the corporate network and will be registered to the Cisco Unified Communications Manager (Unified CM), select Cisco UCM > Register.
  • If your phone connects to the corporate network and will be registered to the Webex Calling, select Cisco cloud service > Register.
  • If your phone uses Mobile and Remote Access (MRA) to connect to the corporate network when it's away from the office, select Cisco cloud service > Register.
Contact your administrator if you don't know which service to select.
4

When prompted for an activation code, enter your activation code, and select Activate.

Your phone starts the registration immediately. Typically, it takes about 3 minutes depending on the network condition.

After the registration succeeds, your primary line name or number displays on the top left of the phone screen.

5

When the registration is complete, you will be prompted to enable or disable the noise removal feature.

If you don't take any action, the phone enables the feature at timeout.
This feature can filter out background noises during a call. If you choose to disable the feature now, you can still enable it later.

In some situation, the Cisco DHCP server doesn't contain the network information of the TFTP servers. To accomplish the registration, you need to manually enter an alternate TFTP server address that your administrator provides.

Before you begin

  • You have turned on your phone.

  • Your phone connects to a wired or wireless network.

  • Get a TFTP server address from your administrator.

  • Get a 16-digit activation code from your administrator, if needed.

1

Select Start on the Welcome screen.

If you don't take any action, the phone goes to the next step at timeout.

Your phone tries to connect to the network. If you use the wireless network, perform the next step. Otherwise, skip it.

2

(Optional) Choose your wireless network from the list, enter your credentials, and select Apply.

Cisco Desk Phone 9841 and 9851 don't support Wi-Fi.
3

Select Network.

The screen shows the message depending on how your phone connects to the network.
4

Select Network settings on the Network connection screen.

5

Toggle on Alternate TFTP in the IPv4 section.

6

Enter an IP address in TFTP Server <n>, where <n> represents the type of the TFTP server.

TFTP Server 1 is the primary server, TFTP Server 2 is the secondary server.
7

Select Apply.

The registration starts automatically. If your phone requires an activation code to continue, do the following:
  1. Get an activation code from your administrator if you don't receive it yet.

  2. Enter your activation code, and select Activate.

Typically, the registration takes about 3 minutes depending on the network condition.

After the registration succeeds, your primary line name or number displays on the top left of the phone screen.

8

When the registration is complete, you will be prompted to enable or disable the noise removal feature.

If you don't take any action, the phone enables the feature at timeout.
This feature can filter out background noises during a call. If you choose to disable the feature now, you can still enable it later.

Need more help?

See the following sections for more help information:

  • To look for more documentation about your phone, go to Help Center.

  • To look for technical support, go to Cisco technical support.

  • For information about how to use and configure KEM, see Cisco Desk Phone 9800 Key Expansion Module.

  • To view the hardware warranty terms, go to Cisco one-year limited hardware warranty terms.

Help Center

Go to the Cisco Desk Phone 9800 Series Help home page to get more help content about your phone. If you don't find the topic of your interest there, try to search for it and use the filters on the left to narrow down the results, if necessary.

the screenshot of how to use Help Center

Technical support

Cisco provides around-the-clock technical support services, both online and over the phone to all customers, partners, resellers, and distributors who hold valid Cisco service contracts.

You should have your Cisco.com User ID, Contract, and Serial numbers ready when you contact Cisco Support to prevent any delays with your support request.

In addition, support staff need the following information:

  • Serial number—Every device has a serial number on the back.

  • Time and date issue occurred—Support staff use device logs or cloud metrics to troubleshoot issues. It is helpful to have the approximate local time and date.

  • Device Logs—Support staff may require the device logs to identify the root cause of your issue.

  • A brief description—Include any actions prior to the incident.

Most firmware issues can be resolved by support staff without a Return Material Authorization (RMA). It is best to use the RMA process for hardware issues.

You can find a list of Cisco worldwide support centers at https://www.cisco.com/c/en/us/support/web/tsd-cisco-worldwide-contacts.html.

Cisco one-year limited hardware warranty terms

Special terms apply to your hardware warranty and services that you can use during the warranty period.

Your formal Warranty Statement, including the warranties and license agreements applicable to Cisco software, is available at Product Warranties.
