These campaigns can be agent based, indicating that the primary goal is to reach customers and connect them with human agents, or they can be IVR campaigns, where the goal is to reach customers and either play them a message, or connect them to a virtual agent for further treatment.

This article is intended to provide an end-to-end procedure on how to configure voice based outbound campaigns in Webex Contact Center. This procedure also covers configurations of other dependent component applications such as Control Hub, Campaign Manager LCM (List and Campaign Manager), and Webex Contact Center Agent Desktop.

Overview

For agent based campaigns, there are three primary types of campaigns, Preview, Progressive, and Predictive. The following is a brief summary of each.

Preview is offered with the Webex Contact Center dialer using a similar mechanism to Progressive/Predictive, whereby the agent is reserved prior to being presented with a customer record. An older, 'pull based model', whereby the agent had to click an icon on their desktop to see the customer record is still in use, but will not be described in this user guide.

The Webex Contact Center provides a dialer which can drive outbound Predictive, Preview, and IVR Campaigns. It must be utilized with a Campaign Manager which provides the ability to manage campaigns, scrub the dial list for any phone numbers which are part of a Do-Not-Call list, and has a compliance module which ensures that the campaign is operating within the regulations for the region it is deployed in.

Webex Contact Center supports the Webex Contact Center Campaign Manager, an OEM Campaign Manager, as well as pluggable "Bring your own" Campaign Managers which utilize the Webex Contact Center Dialer APIs to operate the Campaigns. For details on the OEM Campaign Manager, please see the following documentation <<<Documentation Link>>>.

Types of Outbound Campaign Modes

The following types of outbound campaign modes are available in Webex Contact Center.

Outbound Preview Campaign Modes

An agent who is not handling active contacts can click the Campaign Contact icon in the Agent Desktop to initiate an outbound preview campaign call. Campaign Management synchronizes the agent state and team information for the enterprise in real-time. Campaign Management dynamically retrieves a contact to whom an agent can dial out to, based on the preview campaigns that are currently active for the agent's team. There can be multiple campaigns that are active at the same time. The contact details are displayed to the agent. The agent can then make the outbound preview campaign call.

For more information on how to make outbound preview campaign calls, see Make an outbound preview campaign call.

Outbound Progressive Campaign Modes

Agents don't need to manually initiate the outbound call in the Progressive dialer. When an agent completes a call and moves to the Available state, the dialer will automatically reserve the agent and dials one or more contacts for every available agent (based on the configured lines to dial per agent). In progressive mode, the number of lines to dial is fixed based on the configuration of the campaign.

For more information on how to make outbound progressive campaign calls, see Make an outbound progressive campaign call.

Outbound Predictive Campaign Mode

Predictive campaign calls are very much similar to progressive calls. Agents don't need to manually initiate the outbound call in the Predictive dialer. When an agent completes a call and moves to the Available state, the dialer will automatically reserve the agent and dials one or more contacts for every available agent (based on the current lines to dial per agent). In predictive mode, the number of lines to dial varies throughout the day in order to maximize agent efficiency while maintaining the configured abandon rate on the campaign.

IVR Based Campaign Calls

As a part of proactive outreach functionality, IVR based campaigns enable administrators to configure predictive dialers for agents to dial IVR based campaign. This feature completes the campaign offering with Campaign Manager by enabling outbound IVR-based campaigns, allowing proactive outreach to customers without utilizing live agents. The administrator configures a set number of IVR ports to pace the outbound calls in the campaign. IVR ports are utilized when calling a customer and either playing a set of messages or sending them to an AI Agent to collect information. IVR Ports become free if the call is sent to a live agent or the call with the customer completes.

IVR campaigns are available in two modes:

  • IVR progressive mode
  • IVR predictive mode

For more information on additional steps to configure IVR campaign types, see step-7 below.

The following diagram depicts a summarized workflow that administrators of the respective components perform to set up outbound campaign calls:

Diagram summarizing the workflow to set up outbound campaign calls in Webex Contact Center.

Before you begin

  • You can configure and use outbound campaigns only if your enterprise has purchased the premium agent license and the Campaign Manager SKU.

  • For outbound progressive campaign calls, make sure that you use Campaign Manager LCM version 4.2.1.2310 and above.

  • For outbound predictive campaign calls, make sure that you use Campaign Manager LCM version 4.2.1.2401 and above.

  • You must have the administrator role and access credentials for the following applications:

    • Control Hub

    • Webex Contact Center

  • Contact your Account Manager to procure the user ID and password to access LCM.

1

Set up Connector to integrate LCM application with Webex Contact Center.

  1. Log in to the customer organization on Control Hub.

  2. Navigate to Services > Contact Center.

  3. From the Contact Center navigation pane, select Tenant Settings > Integrations > Connectors.

  4. Under Custom Connectors, click Set up. The Set up Custom Connector screen displays. If you have already added other connectors and you want to add this connector, click Add More.

  5. Enter the name of the connector as CampaignManagerCredential.

  6. Select Basic Auth as the authentication type from the drop-down list.

  7. In Resource Domain, enter the domain name link that Campaign Manager provides to you. This link is sent by email.

  8. Enter the username and password that Campaign Manager provides for your organization. The username and password are sent to you by email.

  9. Enter the validation URL details.

  10. Click Done to save the connector. This is a one-time activity to set up the connector.

2

In Control Hub, create Agents and Teams. Configure the same team in the outdial queue as confirmed in Campaign Manager.

For more information on how to create Agents, see Manage User Profiles in Webex Contact Center.

For more information on how to create Teams, see Manage Teams in Webex Contact Center.

3

In Control Hub, configure an Outdial Queue for every campaign with the following settings:

  • Enable the Outbound Campaign Enabled toggle button.
  • Set the Queue Routing Type field to Longest Available Agent.
  • In Call Distribution Group field, choose the teams that will work on the respective campaign.

Only a single call distribution group can be added. The agents in the teams selected will be utilized for the progressive campaign and will be reserved by the dialer once they are in the available state. The maximum number of agents supported in a queue are 500.

When you create the outdial queue for the Progressive or Predictive campaign, choose the maximum time in queue to a large enough time interval to avoid the agent reservation requests from timing out frequently. The recommended value is 3600 seconds.

For more information on how to create an outdial queue, see Create an Outdial Queue.

4

In Management Portal, create the required Global Variables of type String.

For this purpose, create global variables for the customer data that is imported into Campaign Manager.

Do not make global variables reportable if they contain Personally Identifiable Information (PII).

Set Agent Viewable as True for any variable that you want to show on the Agent Desktop. You can create a maximum of 28 global variables for this purpose.

5

In Control Hub, create a flow for the Outbound Campaign calls.

  1. Add the global variables that are to be displayed on the Agent Desktop in the Interaction Panel.

  2. Create a variable with the name campaignId (case sensitive) and a Desktop Label as Campaign Name.

  3. In the Desktop Viewability & Order section, select the variables in the order that is desirable for the interaction panel.

    You can add up to a maximum of 30 variables in the interaction panel for this purpose.

  4. In the Desktop Viewability & Order section, select campaignId as one of the variables that displays in the incoming popover. This enables agents to view the campaign that they are working on when the call is ringing.

    You can add up to a maximum of 6 variables in the incoming popover for this purpose.

  5. Configure the following events:

    • PreDial (for ANI Customization)

    • OutboundCampaignCallResult (for Call Progress Analysis)

      You can add additional call control activities such as PlayMusic, DisconnectContact, etc. to this event as per the CPA results such as AMD, ABANDONED, and LIVE_VOICE (for IVR based campaign).

      When a LIVE_VOICE customer is reached in an IVR Campaign, they may be played a message , or sent to an AI Agent for more intelligent interactions. Additionally, the call may be escalated to a live agent if desired. In order to do this, a separate flow must be utilized which either queues to a queue or an agent. The destination flow must be associated with an inbound entry point. The "Goto EP" activity must be utilized from the original flow to direct the call to the destination flow where it will escalate to a live agent, as shown in the figure below:

    The following diagram depicts a sample flow configuration for the OutboundCampaignCallResult handler.

    Same event flow in Webex Contact Center for OutboundCampaignCallResult handler.
    Sample flow for Outbound Progressive Campaign

    For more information on how to configure flows and events, see Create and manage flows and Events in Flow Designer respectively.

6

In Control Hub, configure an Outdial Entry Point for every campaign with the following settings:

  • Assign the outdial queue created in step-3.
  • In the Flow field, associate the flow that you have created for the outbound campaign.

For more information on how to create an outdial entry point, see Create an Outdial Entry Point.

7

Configure outbound campaign groups using the Campaign Manager interface.

  1. Webex Contact Center, click Campaign Management Portal to cross launch the LCM interface.

  2. Navigate to Campaign Group and click Add a new Voice Campaign Group.

  3. Assign Dialer and Outdial Entry Point.

  4. In Pacing mode field, choose the campaign type such as Preview, Progressive, Predictive, Progressive IVR, and Predictive IVR.

  5. Link the entry point to the Campaign in LCM to associate the outdial queue created in step-5.

  6. Assign Global Business Parameters and click Next.

  7. To configure Progressive campaign:

    • Define Caller Id, Dial Rate (1-10), and No Answer Ring Limit.

      For this purpose, Caller Id configured in the Flow Control module of Webex Contact Center takes precedence over this setting.

    • (Applicable to Progressive campaigns only) Turn on CPA (Call Progress Analysis), AMD (Answering Machine Detection), and tweak the parameters if required.

      To enable AMD, make sure you turn on the Terminating Tone Detection toggle button in the Configure Campaign Group page. By default, this toggle button is set to OFF.

    When running a progressive Campaign for which the dial rate is set to 1 only, there is the ability to pass Customer specific data (normally only available after the customer call connects) in the incoming popover. For example, a customer's name and/or account number could be shown in the incoming popover on the desktop when the agent is reserved. In this manner, the agent can prepare for the contact which may connect to them if the call reaches the customer. In the event that the dial rate is greater than 1, this customer data is not available as it is unknown which customer may connect to the agent.

    You must configure this customer data on the desktop layout in the flow within the incoming popover section. Note that the incoming popover does not support sensitive data.

  8. For Predictive campaign, choose Predictive in step: 7-e above and configure for the following additional parameters:

    • Maximum Dial Rate: Maximum dial rate to achieve configure abandon rate.

    • Abandon Rate: Abandon rate for the campaign.
    • Predictive Correction Pace: Size of the number of voice calls that a major correction is taken to the predictive calls to be dialed.
    • Predictive Gain: Multiplier on how rapidly it moves upward or downward.

    These parameters are only applicable for predictive campaign and will be visible only when predictive campaign is configured.

  9. For IVR based campaign, choose either IVR Progressive or IVR Predictive in Step: 7-e above and configure for the following additional parameters:

    • In the Dialer Details tab and configure the IVR Ports field as per your requirement. You can set the number of IVR ports between 1 and 1000.

      For example, in a progressive campaign, if you set the dial rate as 10, each IVR port can make 10 calls. However, in a predictive campaign, the dial rate of each port increases based on the abandoned rate.

  10. Define Contact Parameters.

For more information about how to configure campaigns using Campaign Manager, see the Cisco Webex Contact Center Campaign Manager User Guide.

8

Configure outbound campaigns and the questions and answers to display in the call guide at the campaign level using the Campaign Manager interface.

  1. In Webex Contact Center, click Campaign management portal to cross launch the LCM interface.

  2. Navigate to Campaign and add a campaign.

  3. Define Campaign Name, Category, Business Outcome group, and Timezone, and click Next.

  4. Assign Campaign Group defined in Step 7 and click Next.

  5. Define Contact Strategy.

  6. Define settings for Retry and click Next.

  7. Enable settings like DNC, NDNC and save the settings.

  8. Choose a campaign and upload contacts under the Contact Lists section. You can upload the contact lists either in CSV or JSON format.

  9. Start the campaign from the campaign page from Kebab.

For more information about how to configure campaigns using LCM, see Cisco Webex Contact Center Campaign Manager User Guide.

9

Create a Call guide using the Campaign Manager interface.

  1. In Webex Contact Center, click Campaign management portal to cross launch the LCM interface.

  2. Click Script Designer.

  3. Click a Campaign Group in the left pane and choose the Campaign Name to add a new Call guide script.

  4. In the Form tab, create a new form and check the Call Guide check box.

    Configure the Business field, Global Variable, Question Field, and Library Function, and use them in the form to create the call guide

  5. Click Save.

  6. Go to the Campaign tab and choose the required call guide from the Call Guide dropdown list.

For more information, see Call Guide and Form topics in Cisco Webex Contact Center Campaign Manager User Guide.

What to do next

Calling line identifiers

The calling line that the customer sees can be customized in three different ways. The most common approach is to associate a single calling line identifier (CLID) with the campaign. It is also possible to provide an individual CLID with each record (Please see the Campaign Manager documentation to achieve this). Finally, the predial event may be configured in the flow in order to perform flow specific ANI selection. The precedence order for these approaches is as follows:

  1. CLID on the Campaign (lowest precedence)

  2. CLID on the individual record

  3. PreDial event with SetCaller ID (highest precedence)

Agent Experience for Predictive/Progressive

Agents who are working in a predictive or progressive campaign who are selected for the campaign are first reserved by the Campaign and a physical call is placed to their device/desktop (called a reservation call). The agent will be able to see the campaign id that they are being reserved for in the incoming popover, as shown in the figure below. Once answered, the agent remains reserved while the dialer calls on their behalf with 1 or more customer calls per agent. Once a live customer is reached, the customer call is sent to the agent and the agent will hear a 'zip tone' in their headset as the call connects. Additionally, the interaction panel will fill with any customer metadata configured which is specific to the customer.

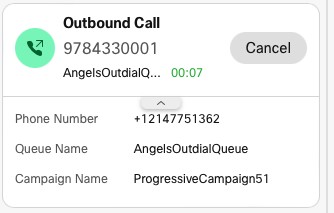

Incoming Popover Progressive example

At the conclusion of a customer call and once the agent performs wrap-up, they will transition to the available state where they may once again be selected for a campaign call, or perhaps an inbound call if the agent is setup to blend between inbound and outbound.

In the event that an agent wants to exit the reservation state before a customer call is sent to them, they may set their state as Idle and drop the reservation call (either on the telephony device or via webRTC if the webRTC desktop is in use).

When running a progressive Campaign with a dial rate of 1, a special mode is activated which allows the agent to view a subset of customer metadata in the incoming popover (up to 6 fields may be selected). This is achieved by setting those customer fields in the incoming popover, as shown in the figure below:

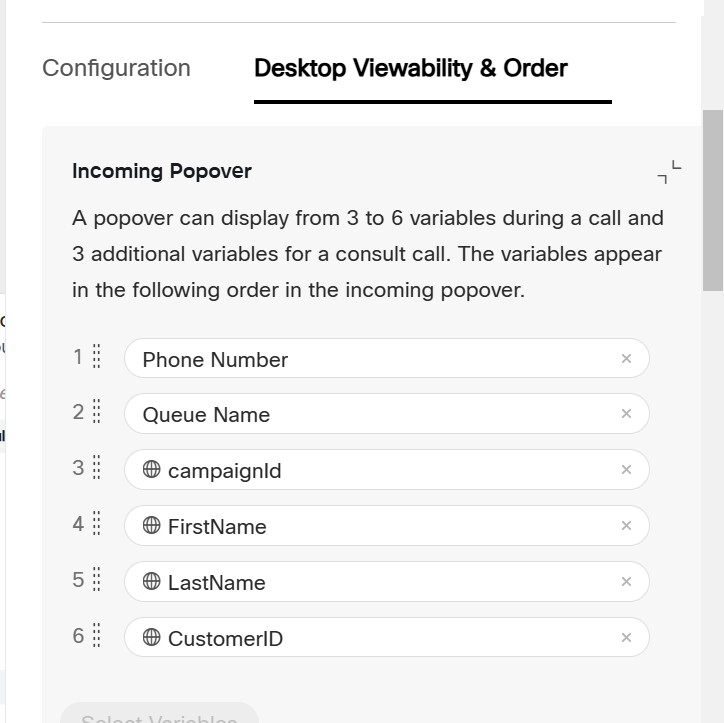

Setting customer data to show in progressive 1:1 special mode

Then, when the customer call is being dialed by the dialer, it will display the customer metadata as shown below:

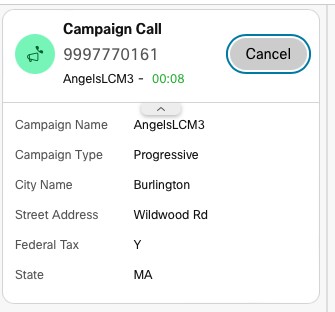

Incoming Popover showing customer data in 1:1 mode

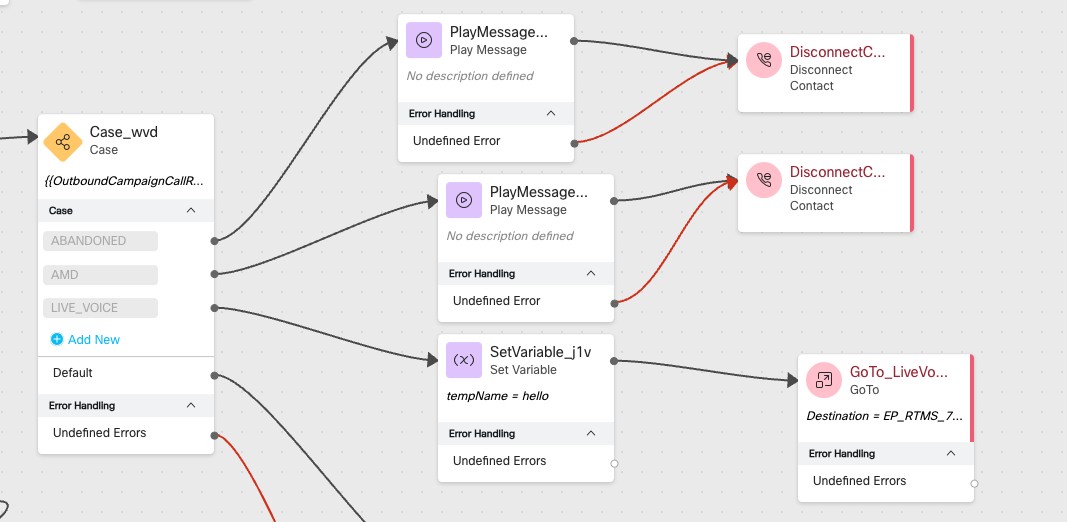

When a LIVE_VOICE customer is reached in an IVR Campaign, they may be played a message (as shown in the diagram), or sent to an AI Agent for more intelligent interactions. Additionally, the call may be escalated to a live agent if desired. In order to do this, a separate flow must be utilized which either queues to a queue or an agent. The destination flow must be associated with an inbound entry point. The "Goto EP" activity must be utilized from the original flow to direct the call to the destination flow where it will escalate to a live agent, as shown in the figure below:

Usage of a GOTO EntryPoint activity to escalate an IVR call to an agent

Blending of Campaign Agents

This is applicable only for agent based campaigns. Agents who work on outbound campaigns can be 'blended' between inbound and outbound calls, as well as between multiple campaigns. By default agent reservations for progressive/predictive campaigns are prioritized lower than inbound calls. Therefore, if it is desirable to always favor inbound calls over campaign calls, no configuration is required. When the agent becomes available, an inbound call will be selected above a campaign reservation if an inbound call exists in a queue that the agent belongs to. Alternatively, campaign calls can be given precedence above inbound calls if desired by using the "Queue Ranking" feature configured on the agent team. As shown in the diagram below, set the campaign queue at a higher rank as compared to any inbound queue. For example, the Iphone_Sales_Campaign queue is set at a higher precedence than the Iphone_Sales queue, which is an inbound queue.

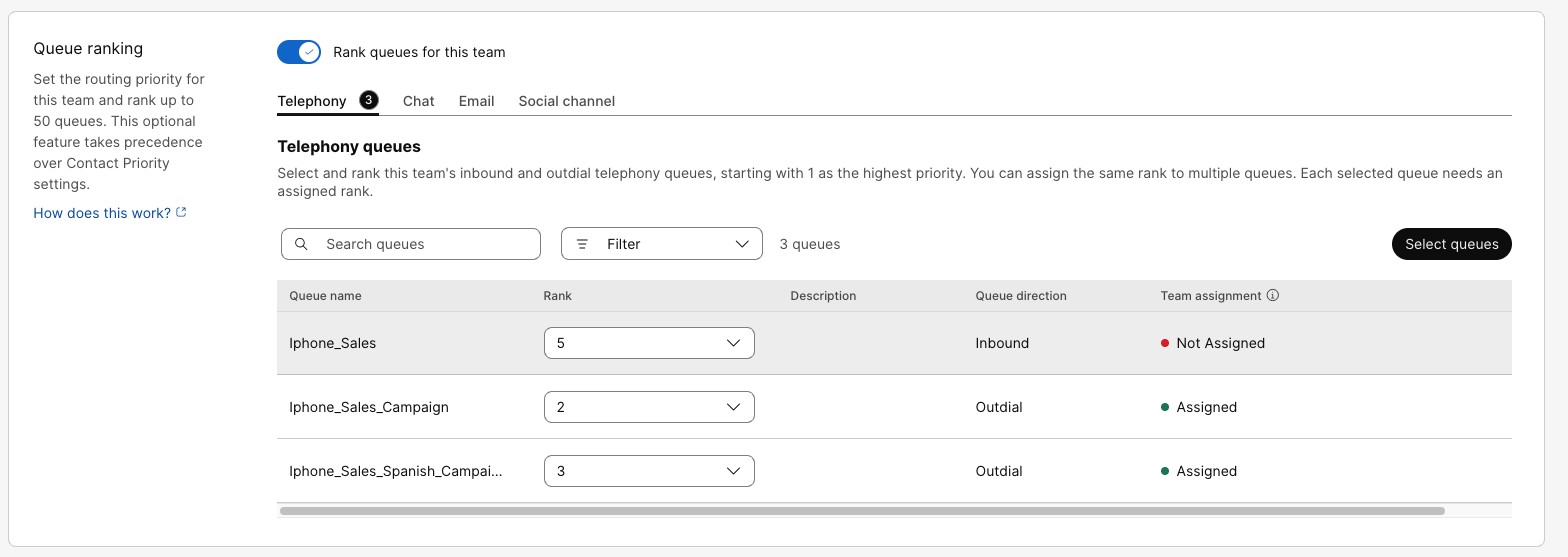

Example of Queue Ranking applied to a team

Campaign Reporting

In addition to the more detailed Campaign Reporting which is available on the Campaign Manager, there are a series of Campaign reports which provide a breakdown of all the calls made in Predictive/Progressive/Preview or IVR campaigns. The stock Campaign Reports will populate regardless of which Campaign Manager is utilized.

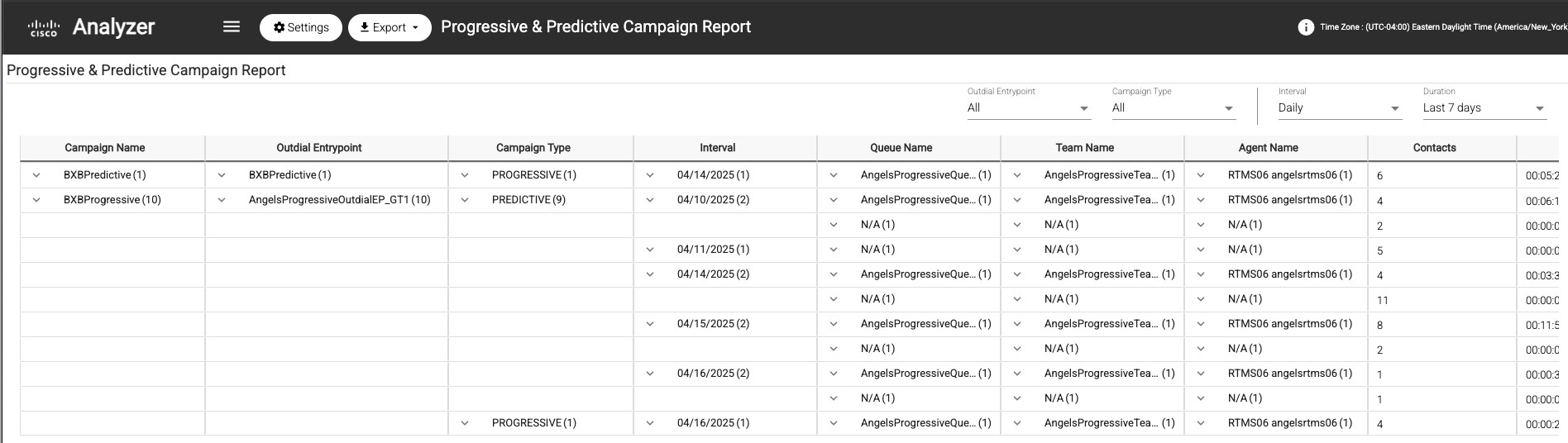

The following screenshot shows the predictive/progressive report, which groups predictive and progressive calls together. Each row can be "drilled down" further to gain further insights.

Progressive and Predictive Campaign Report

Campaign APIs

To know how to use the Campaign APIs, see Campaign Manager Outbound Dialers document.
